An Accessible Current Page Navigation State

Design and technical considerations behind the icon that indicates what page you're currently on.



Introduction #

Colour is an effective way to convey meaning on the web. For example, the current page "Blog" on this sites header is highlighted in orange.

The orange colour is accompanied by an icon the double chevron – which is not just a cosmetic detail – but serves a functional purpose to those with low or colour vision deficiencies.

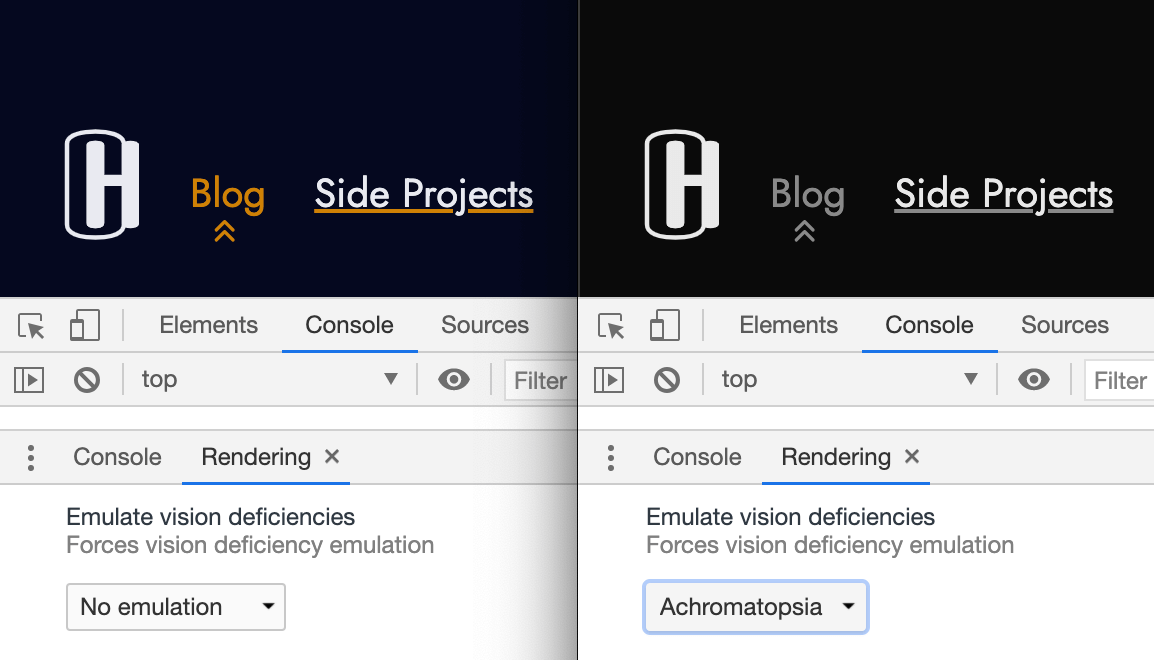

Screenshot comparing this websites navigation in colour and black and white.
Emulating vision deficiencies using Chrome DevTools provides insights into how people with vision deficiencies view your site. In this example the icon provides a visual indicator (alongside colour) to reflect the current page.

CSS background image #

Originally the double chevron was applied using CSS background image due to the simplicity of positioning it with background-position:

Programming language (abbreviated): css

.site-header a[aria-current='page'] {
background-image: url('/img/icons/chevron-double-up.svg');
background-repeat: no-repeat;
background-position: center bottom;

Whilst fulfilling the need to supplement colour with a second visual indicator, using CSS had its disadvantages.

Firstly the icon colour had to be hard coded in the SVG:

Programming language (abbreviated): svg

<svg fill="rgba(206, 128, 5, 1)" ...></svg>

This incurred a maintenance cost should the accent colour (currently orange) change in future. It is also less flexible should the icon be consumed in other contexts (that use other colours).

Secondly the background image (being an external resource reliant on a network request) had the risk of the SVG file failing to load.

And thirdly slow networks suffered a noticeable lag between displaying the text "Blog" and its accompanying icon:

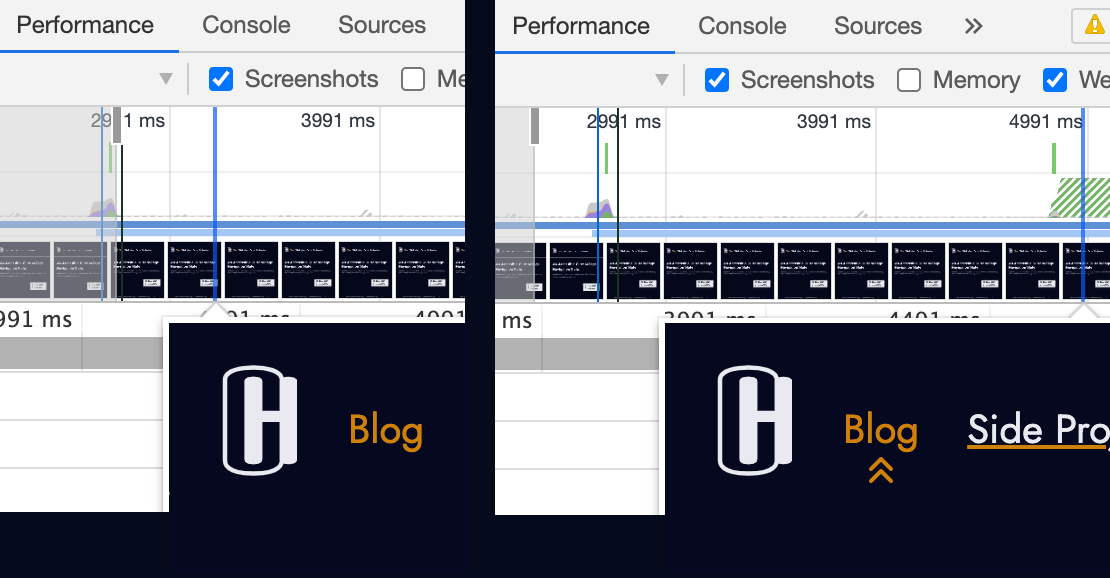

Screenshot of navigation before and after icon is loaded.
Throttling the network in Chrome DevTools to simulate a slow 3G connection enables the performance tab to capture the lag between rendering the HTML and displaying the CSS background image.

Inlining the SVG #

Inlining the SVG in the HTML was a better approach that nullified these drawbacks of CSS background image.

Programming language (abbreviated): html

<a href="/blog/" aria-current="page">

viewbox="0 0 24 24"

d="M4.293 15.707a1 1 0 010-1.414l5-5a1 1 0 011.414 0l5 5a1 1 0 01-1.414 1.414L10 11.414l-4.293 4.293a1 1 0 01-1.414 0zm0-6a1 1 0 010-1.414l5-5a1 1 0 011.414 0l5 5a1 1 0 01-1.414 1.414L10 5.414 5.707 9.707a1 1 0 01-1.414 0z"


The hard coded colour could be replaced with fill="currentColor" giving CSS full control of the SVG colour in this and other contexts.

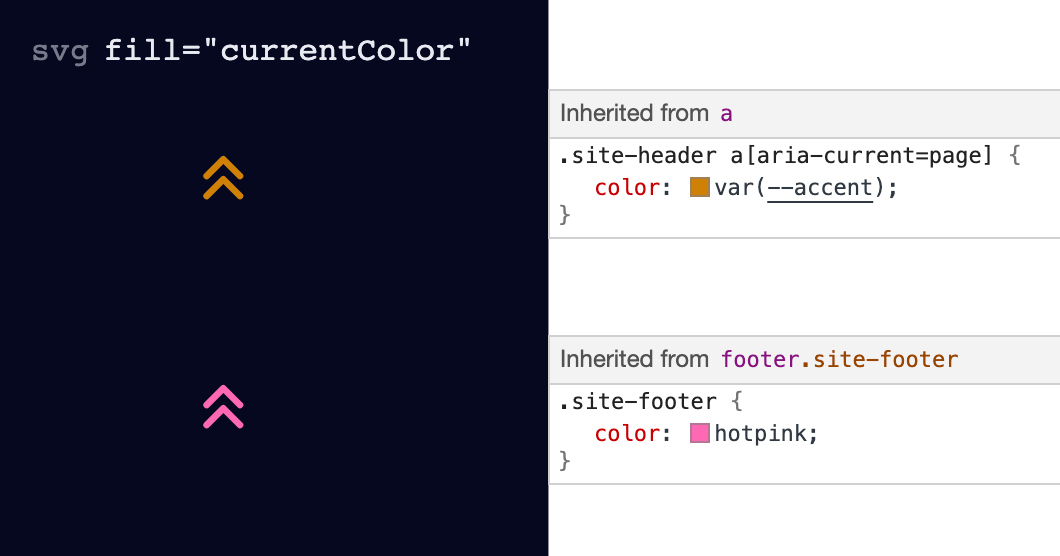

Two double chevron icons. One orange and the other pink.
Using fill="currentColor" allows an SVG to inherit its colour from the surrounding context.

Eliminating the network request (by inlining the SVG) guaranteed the icon is always visible (assuming the HTML is). And ensured the text "Blog" and icon are always shown together in a synchronized fashion (regardless of internet speeds).

One of the temptations of using CSS was easily positioning the icon with background position. However using a combination of left and transform offered the same result and flexibility:

Programming language (abbreviated): css

.site-header a[aria-current='page'] svg {
position: absolute;
bottom: 0;
left: 50%;
transform: translateX(-50%);

Using left: 50% with transform: translateX(-50%) decouples the position of the SVG from its width and height. In other words the icon is always centered regardless of its dimensions.

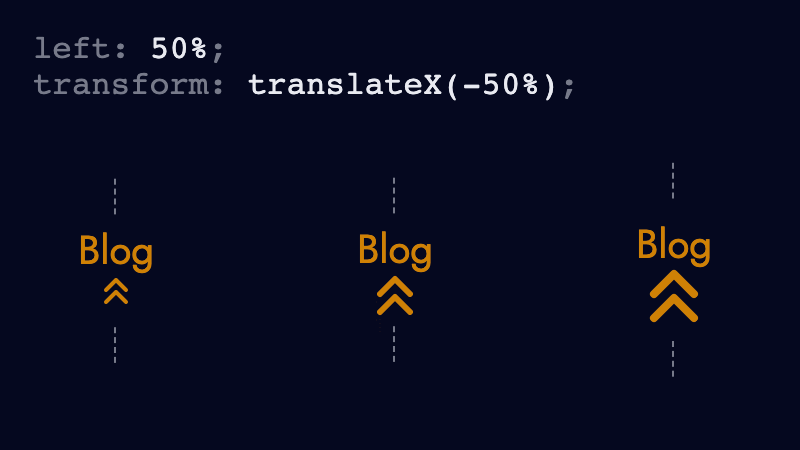

Three centered double chevron icons of different sizes.
left: 50% moves the left side of the SVG to the center of its parent (the anchor). And translateX(-50%) shifts the SVG leftwards by half of its width (SVG width / 2).

Accessibility #

To be accessible the inline SVG needed a couple of things.

Firstly the icon is hidden from assistive technologies such as screen readers using the aria-hidden attribute. Otherwise some screen readers announce "group" upon discovering it.

Programming language (abbreviated): html

viewBox="0 0 24 24"

<!-- ... -->

Secondly the SVG should not allow focus. Using focusable="false" prevents a second tab stop in Internet Explorer, which if permitted would be both unintuitive and undesirable.

Thirdly the SVG width and height use ems instead of pixels. Ems are relative units which allow the icon size to scale proportionality to the current/parent element, or user-defined font-size (whereas pixels don't).

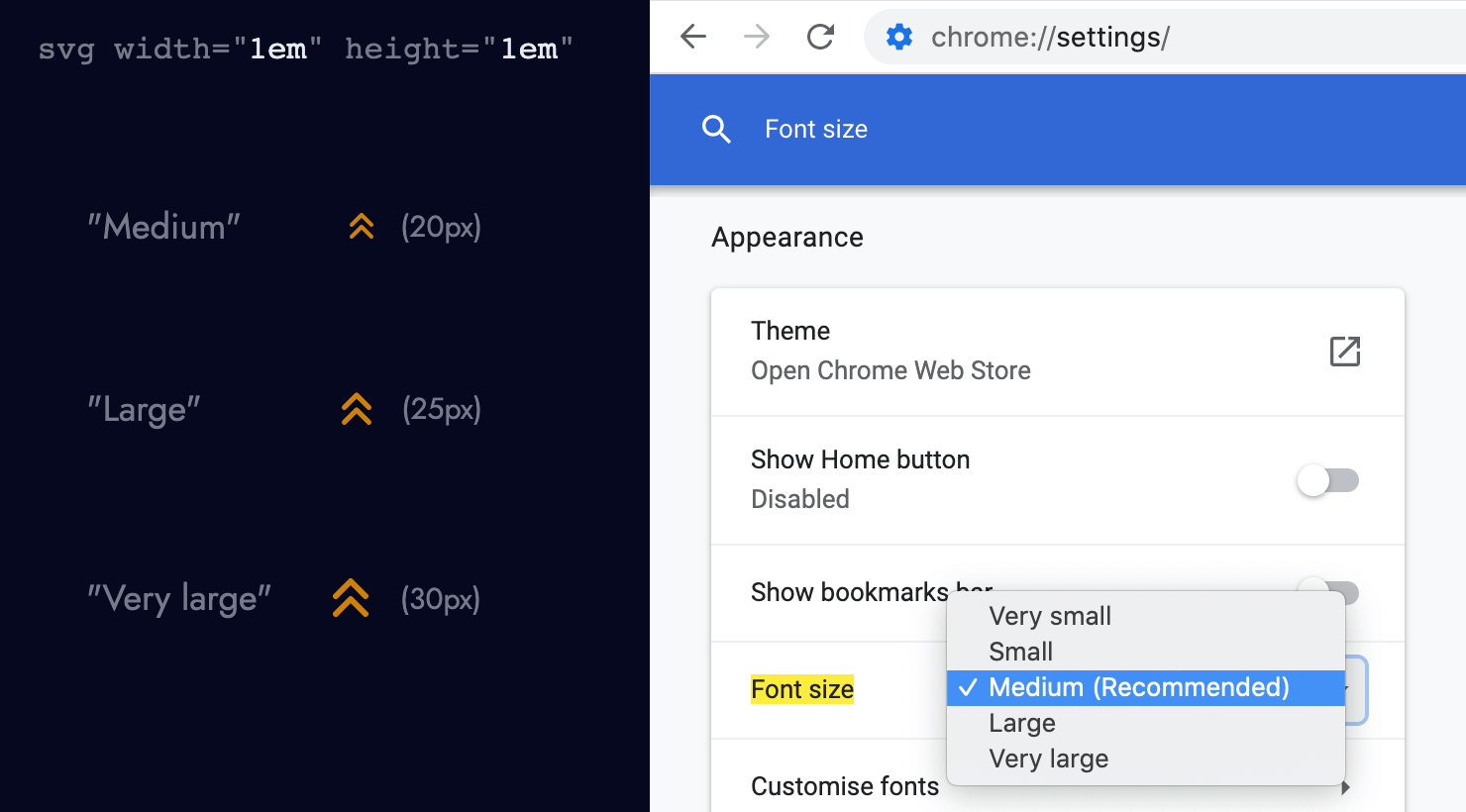

Three icons at different sizes based on Google Chromes font size settings.
Relative units allow SVGs to adapt to the users preferred font size. By default the computed SVG size is 20 by 20 pixels. However changing the font size to "Large" updates the icon size to 25 pixels.

It is important for inline SVGs to have a width and height defined in the HTML. Not doing so (and making CSS responsible for the width/height) is risky since the CSS file could fail to load, resulting in supersized icons.

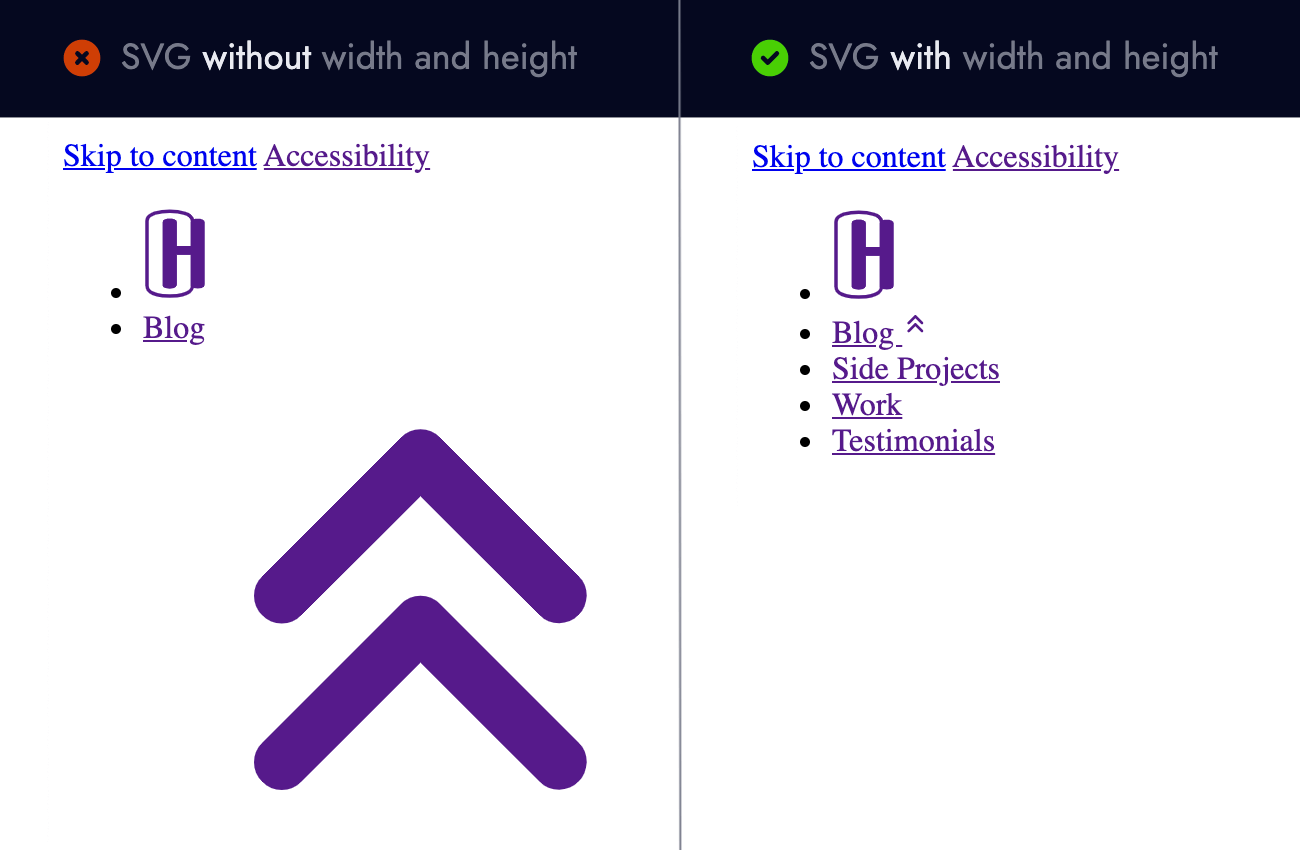

Two SVGs side by side. The left one without a defined width or height. The right one with a defined width and height.
An SVG without a defined width or height will expand to fill all available space. Seeing SVGs consume the full width of a browser (when CSS fails to load) is not an uncommon sight.

Fourthly the colour of the icon needs sufficient contrast with the background colour. Tools such as Firefoxes accessibility inspector and WebAims contrast checker can verify the ratio between foreground and background colours.

Lastly you may have noticed the anchor containing the icon has the attribute aria-current="page".

Programming language (abbreviated): html

<a href="/blog/" aria-current="page">

<!-- svg -->

This allows some screen readers to convey additional context by announcing "Blog, current page link" to indicate (unsurprisingly) what the current page is. Léonie Watson explains using the aria-current attribute in great detail.

And that is a wrap!

To recap #

  • Colour alone cannot be used to convey meaning. It should be supplemented with a second visual indicator (such as an icon).
  • Before using CSS background images consider any limitations or drawbacks an additional network request incur.
  • Using left: 50% with transform: translateX(-50%) horizontally centers an element regardless of its size.
  • Hide presentational SVGs from screen readers using aria-hidden="true".
  • Prevent SVG focus in Internet Explorer with focusable="false".
  • Relative units (ems) enable SVGs to scale proportionality, unlike pixels.
  • Inline SVGs should define their width and height in case CSS fails to load.
  • Icons should have sufficient colour contrast against their background colour.
  • The aria-current attribute provides more context to assistive technologies.
